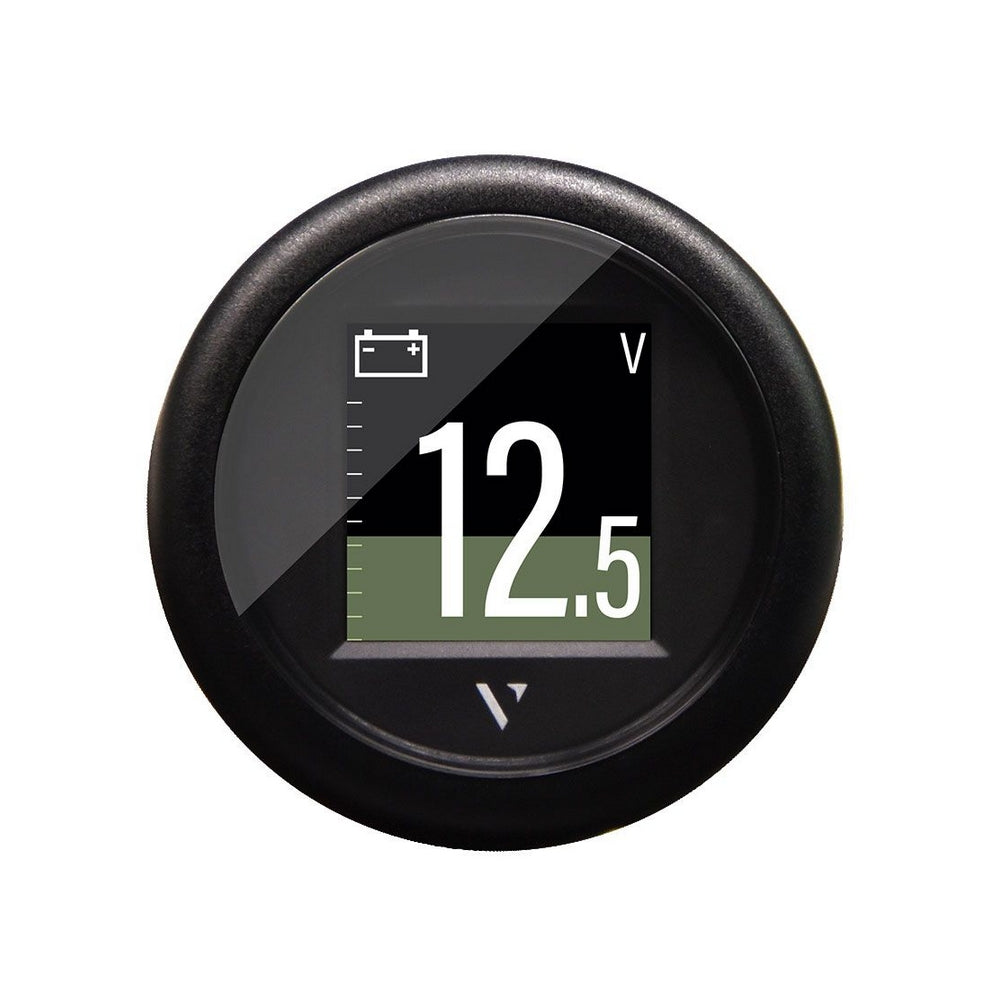

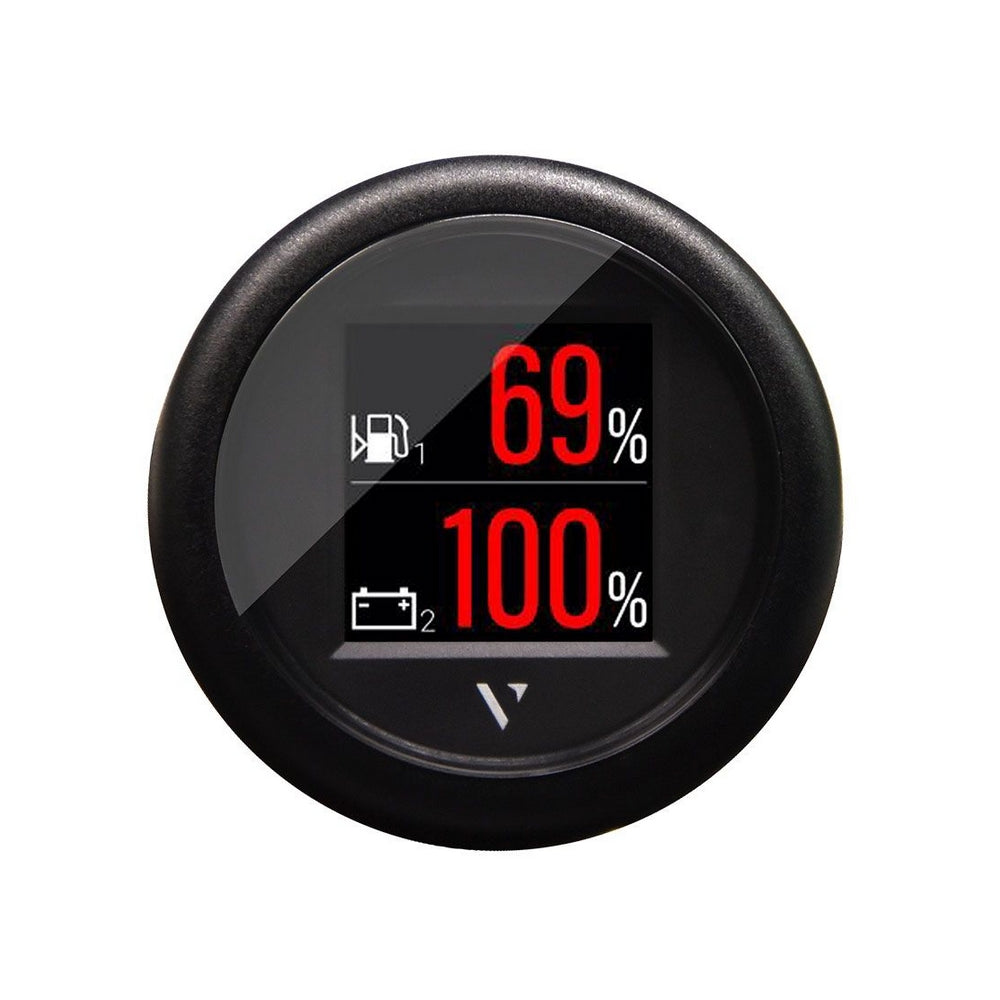

Veratron VL Flex 52 NMEA 2000 - Black - B00043501

The VL FLEX 52 - NMEA 2000 is a versatile and configurable instrument that can display various data from your boat's engine, sensors, and digital network.

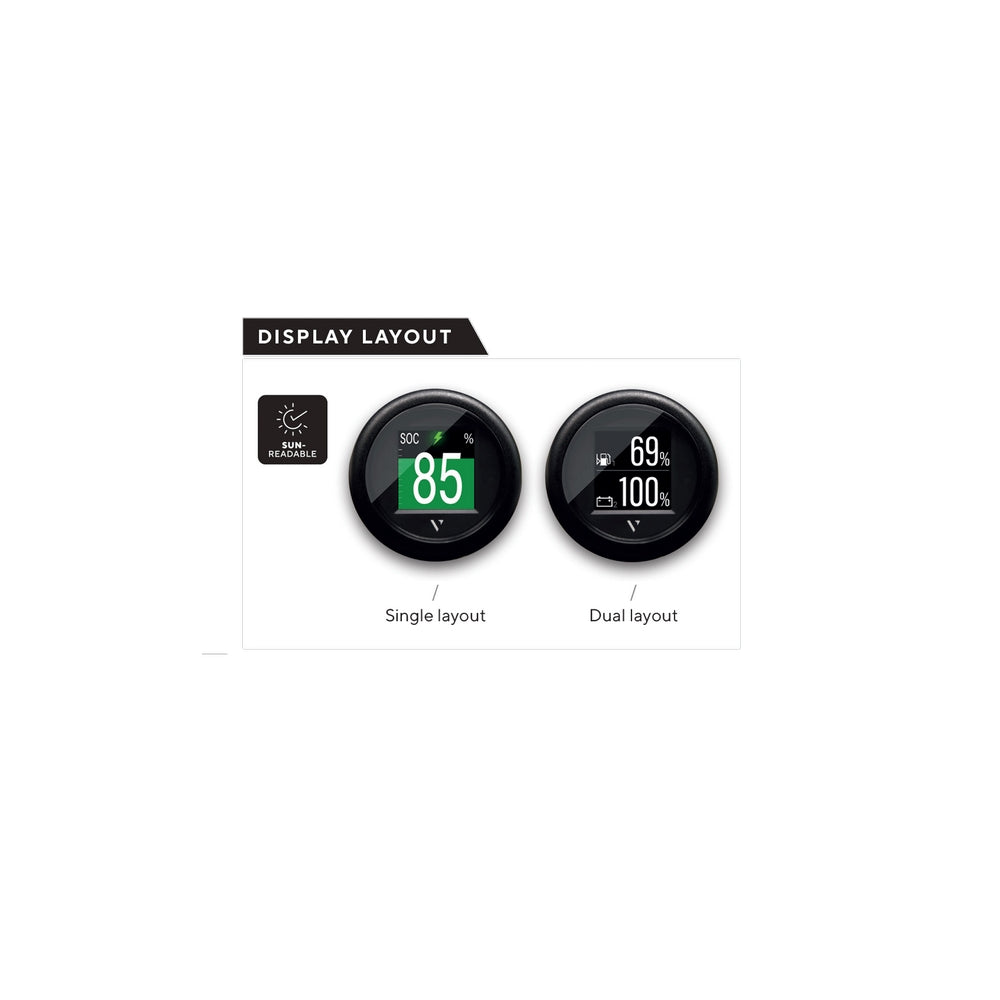

It has a 1.44-inch TFT display that is readable even in strong sunlight, and a standard 52 mm diameter housing that fits easily into your dashboard. You can customize the display layout, data source, and units using a smartphone app and a contactless NFC interface.

The VL FLEX 52 - NMEA 2000 is compatible with both 12V and 24V systems, and has a low power consumption of 50 mA. It is also NMEA 2000 certified, which means it can communicate with other devices on the network.

Highlights:

• 1.44 inch TFT display sunlight readable
• Easy configuration with smartphone app
• NFC interface for programming
• NMEA 2000 certified
• Resistive and Frequency inputs
• IBS port for Battery monitoring
• Front side protection rating IP67

Specification:

• Nominal voltage: 12 / 24 V
• Operating voltage: 8 - 32 V
• Current consumption: 50 mA (Maximum backlight intensity)
• Protection class: IP 67

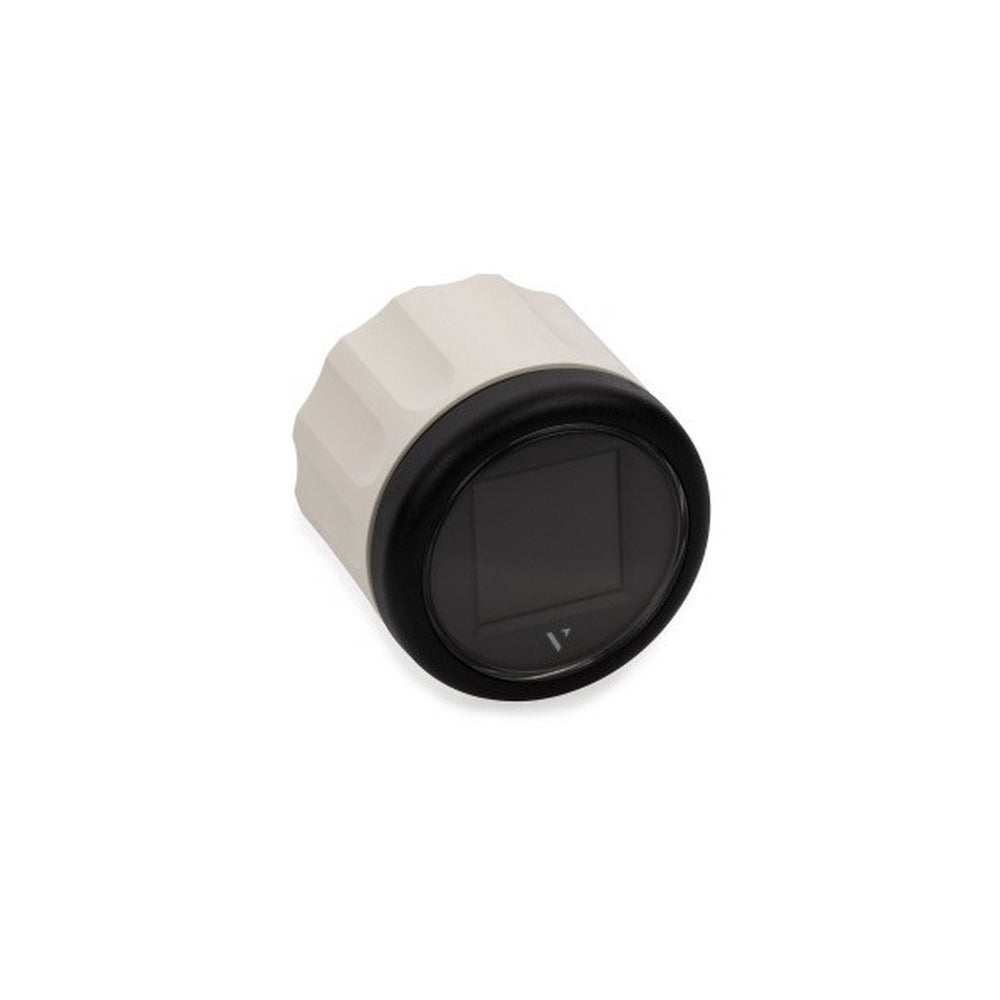

• Dimensions: 60 mm (outer) 52 mm (mounting hole)
• Front ring: Polycarbonate, black or white
• Front lens: PMMA with anti-glare and anti-fog treatments
• Display: 1.44” sun-readable color TFT display
• Resolution: 125 x 125 pixels
• Analog inputs: 1x resistive / 1x frequency
• Connector: Tyco / Hirschmann MQS connector 8 pin
• Digital ports: NMEA 2000, LIN bus
• Wireless interface: NFC
• Operating temperature: -20°C to +70°C
