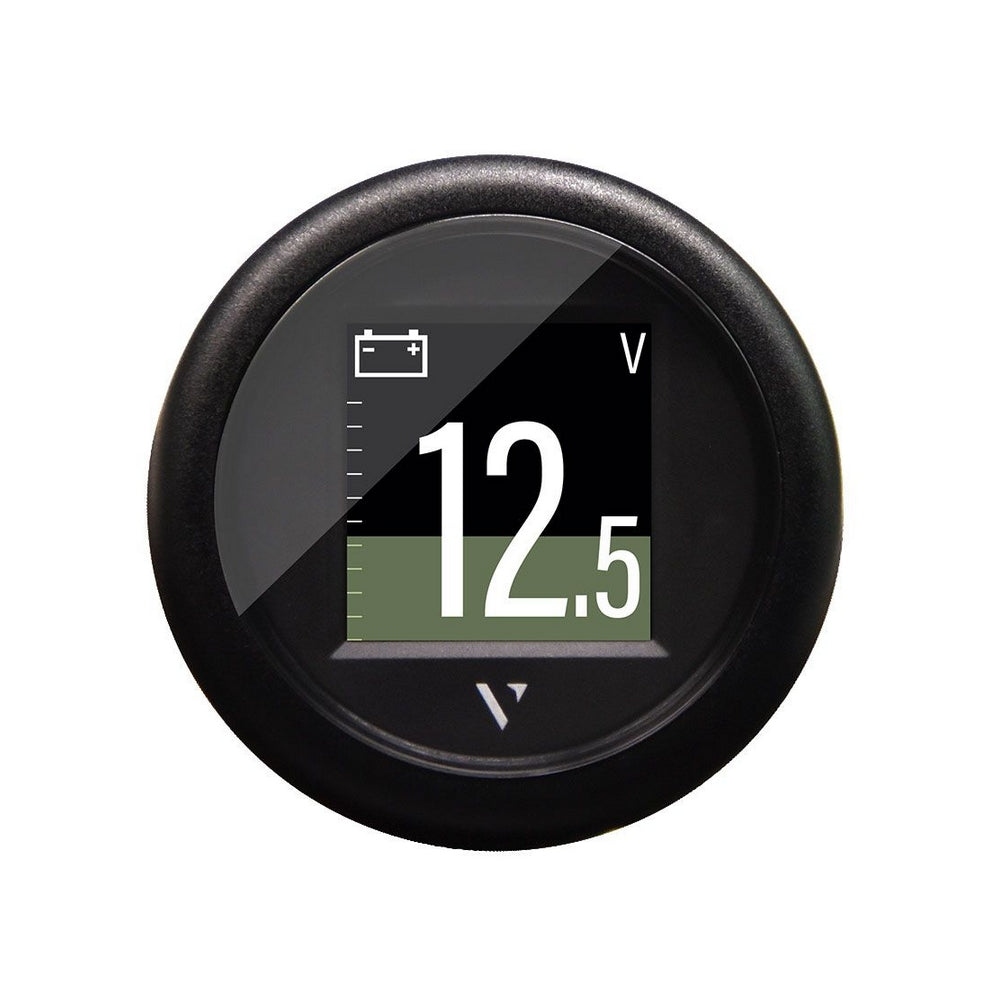

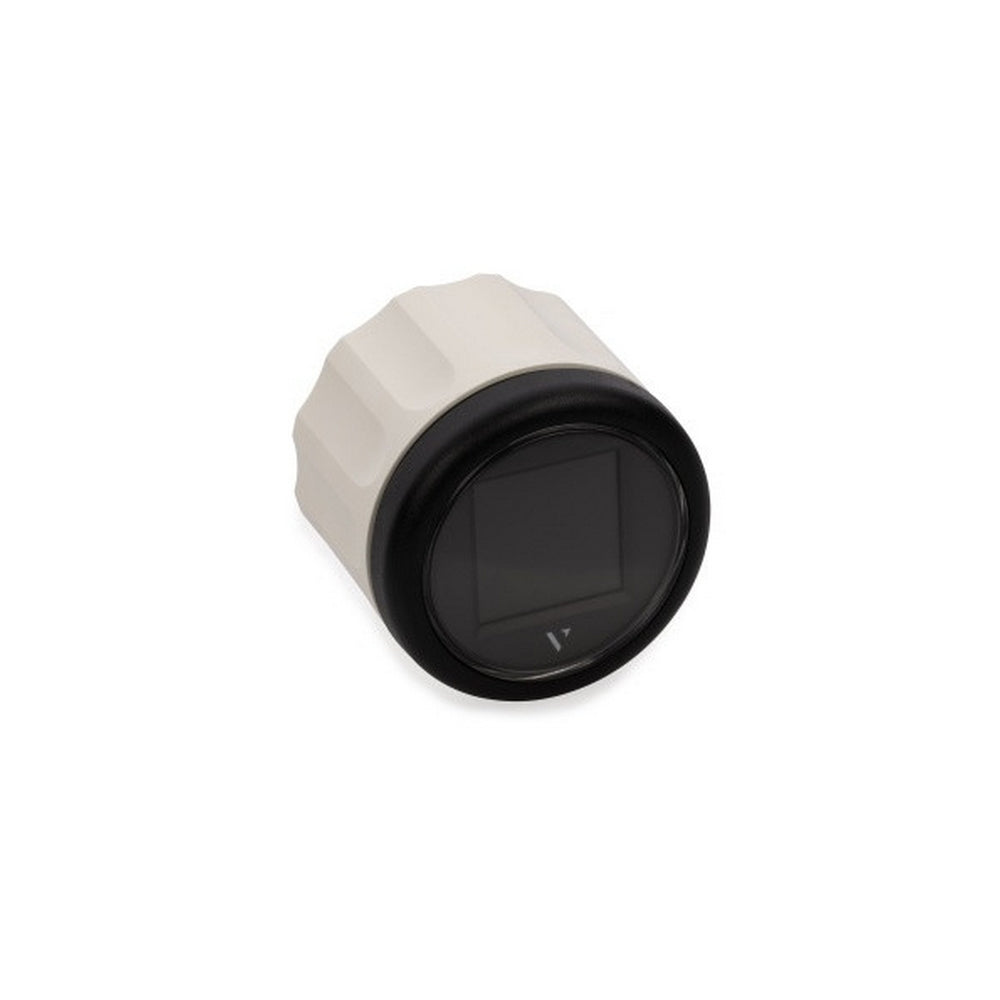

Veratron VL Flex 52 J1939 - Black - B00086001

The VL FLEX 52 - J1939 is a versatile and configurable instrument that can display various data from your boat's engine, sensors, and digital network.

It has a 1.44-inch TFT display that is readable even in strong sunlight, and a standard 52 mm diameter housing that fits easily into your dashboard. You can customize the display layout, data source, and units using a smartphone app and a contactless NFC interface.

The Veratron VL Flex j1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can display two sets of data simultaneously, with a large numerical value and a coloured bar graph.

Highlights:

• 1.44 inch TFT display sunlight readable
• Easy configuration with smartphone app
• NFC interface for programming
• J1939 and LIN 2.0 interfaces
• Resistive and frequency inputs
• IBS port for battery monitoring

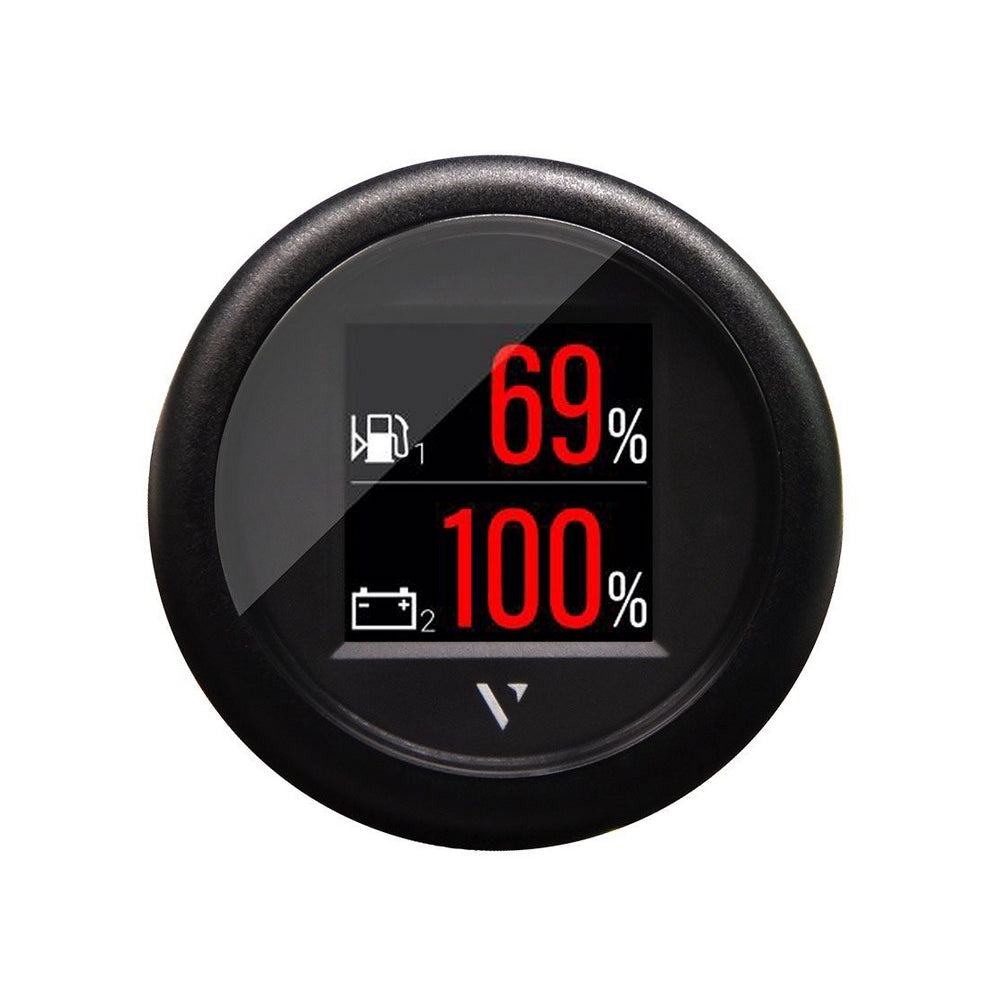

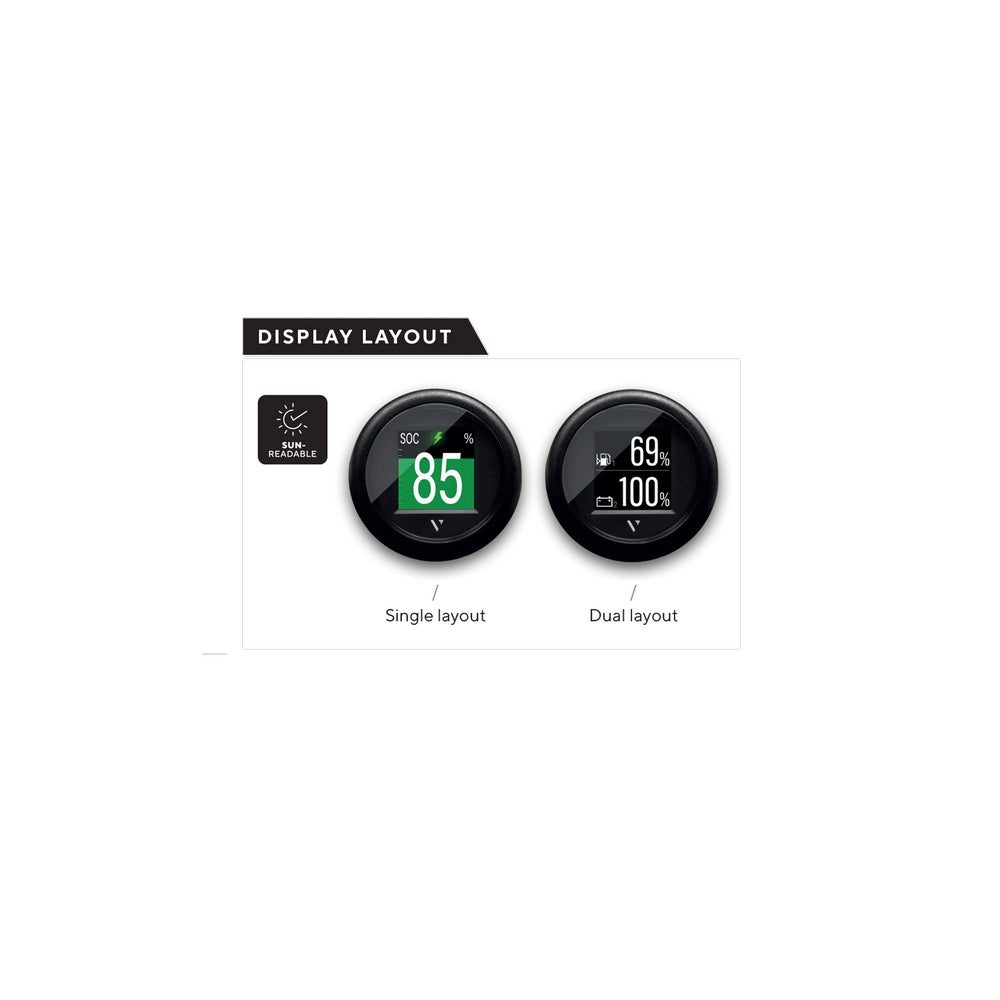

• 2 instruments in 1 with dual screen
• Custom alarm setup
• Colour bar graphs for visual data display

Specification:

• Nominal voltage: 12 / 24 V
• Operating voltage: 8 - 32 V
• Current consumption: 50 mA (Maximum backlight intensity)
• Protection class: IP 67
• Dimensions: 60 mm (outer) 52 mm (mounting hole)
• Front ring: Polycarbonate, black or white
• Front lens: PMMA with anti-glare and anti-fog treatments
• Display: 1.44” sun-readable colour TFT display
• Resolution: 125 x 125 pixels
• Analog inputs: 1x resistive / 1x frequency
• Connector: Tyco / Hirschmann MQS connector 8 pin
• Digital ports: J1939, LIN bus
• Wireless interface: NFC
• Operating temperature: -20°C to +70°C
