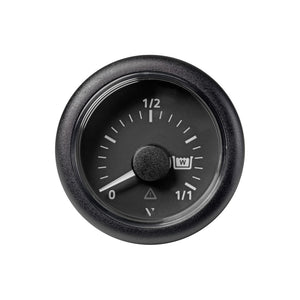

Veratron VDO Viewline Waste Water Level Gauge - 4-20mA - 52mm - Black

The ViewLine blackwater tank gauge indicates the level of waste water. Capacity sensors can be fitted for a maximum depth of up to 1500 mm.

• 8 pole Tyco / Hirschmann MQS plug
• < 2.5 % accuracy over the entire display range
• Current consumption < 100 mA, with integrated LED warning light (red)
• Input signal: 4 - 20 mA current consumption (VDO fresh water sensor)
• Operating voltage 8-32 V
• 240° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

What's in the Box?

• Waste water gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal

Download User Manual
