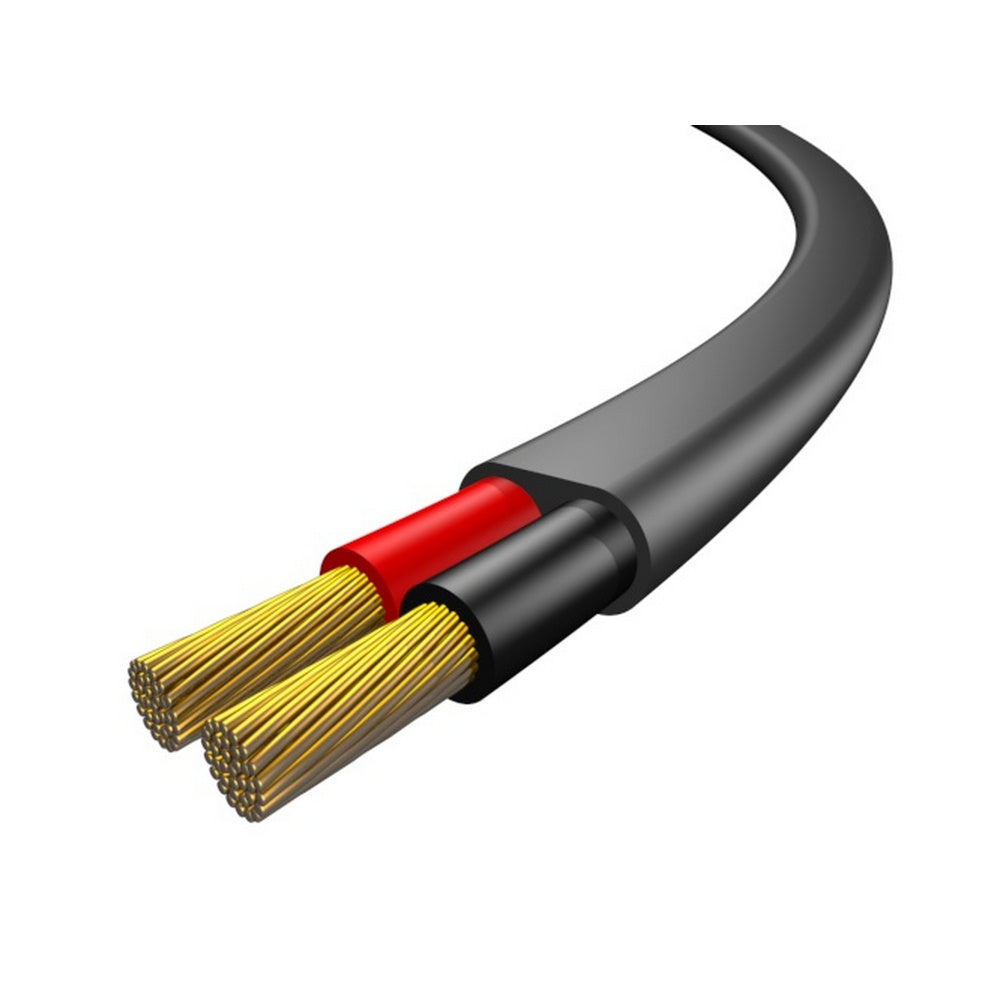

2 Core Flat Thin Wall Cable 2.5mm/14 AWG 29A - Select Reel Size

High temperature thin wall low voltage wiring cables suitable for use in the automotive, marine and allied industries. These cables are specified as standard by manufacturers throughout Europe due to their high performance characteristics.

• Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC
• Plain copper conductors to BS EN 60228:2005, PVC insulated
• Single core suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
• Twins and multicores PVC sheathed at 70ºC
• Suitable for 12v or 24v systems (Maximum voltage 60v)
• Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses
• Good resistance to petrol, diesel, lubricating oils and diluted acids
• PVC insulation offers good resistance to abrasion and cut through

Specification

• 2.5mm² - 2 x 35/030
• Capacity 29.0 Amps
• Overall Diameter: 3.8 x 6.6mm
• Sheath: Black
• Core: Red & Black
• Select Reel Size
