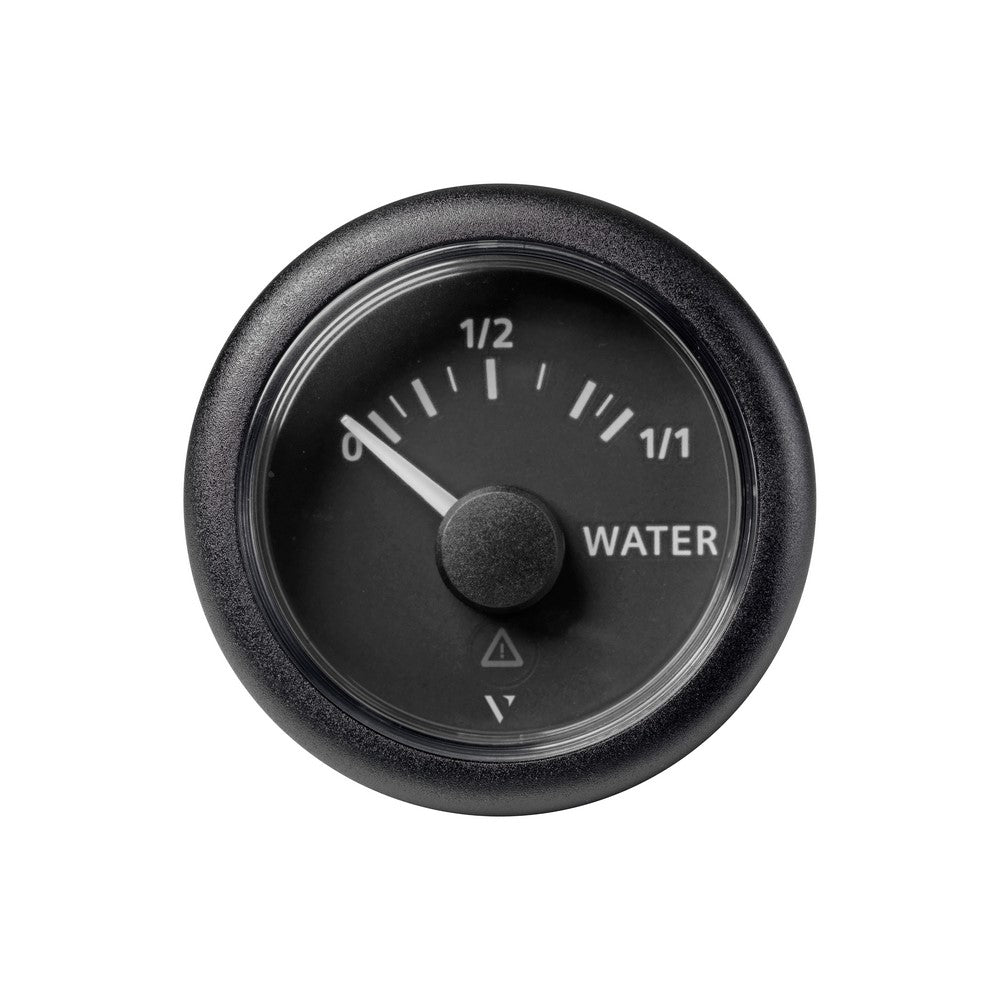

Veratron VDO Viewline Fresh Water Level Gauge (compatible with tubular level senders) 10-180ohm - 52mm - Black

Can be used with Deep Pipe Level Sensor The ViewLine fresh water gauge provides information about the water level in the tank and can be used with all types of tank sensors.

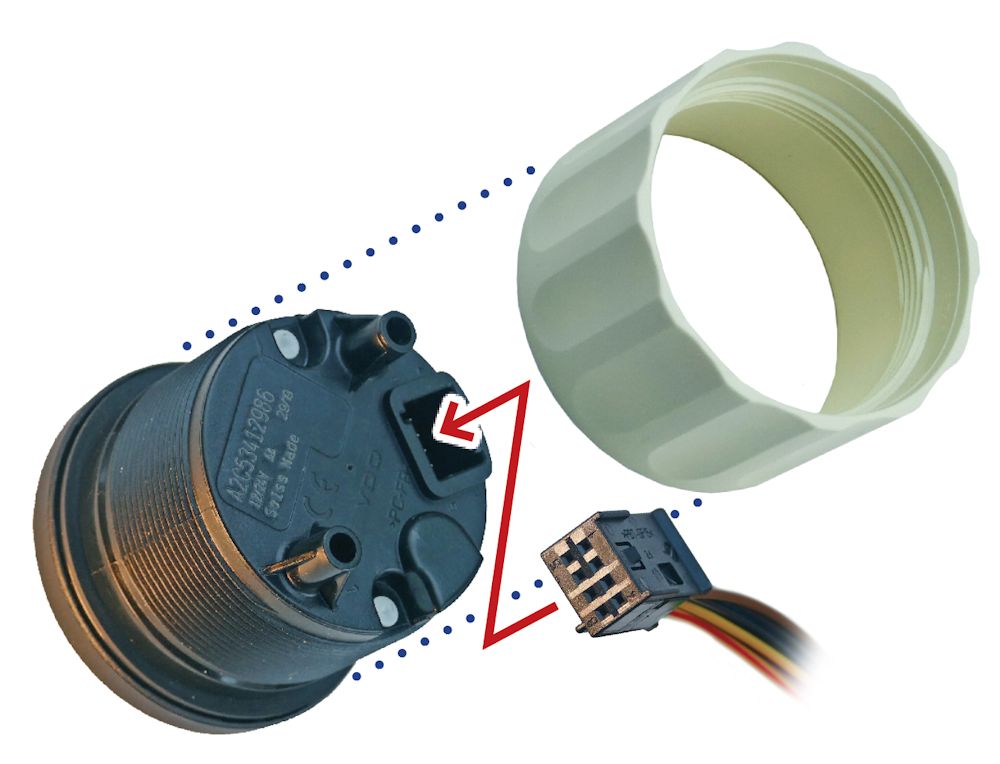

• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Input Ohm: 3-180 Ω
• Operating voltage 8-32 V
• Current consumption < 140 mA
• 90° display angle
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• 52 mm hole diameter
• 59 mm outside diameter
• 50 mm installation depth

What's in the Box?

• Fresh water gauge
• Adapter cable 8 pole
• Round bezel
• Spinlock nut
• Rubber seal

Download Manual
