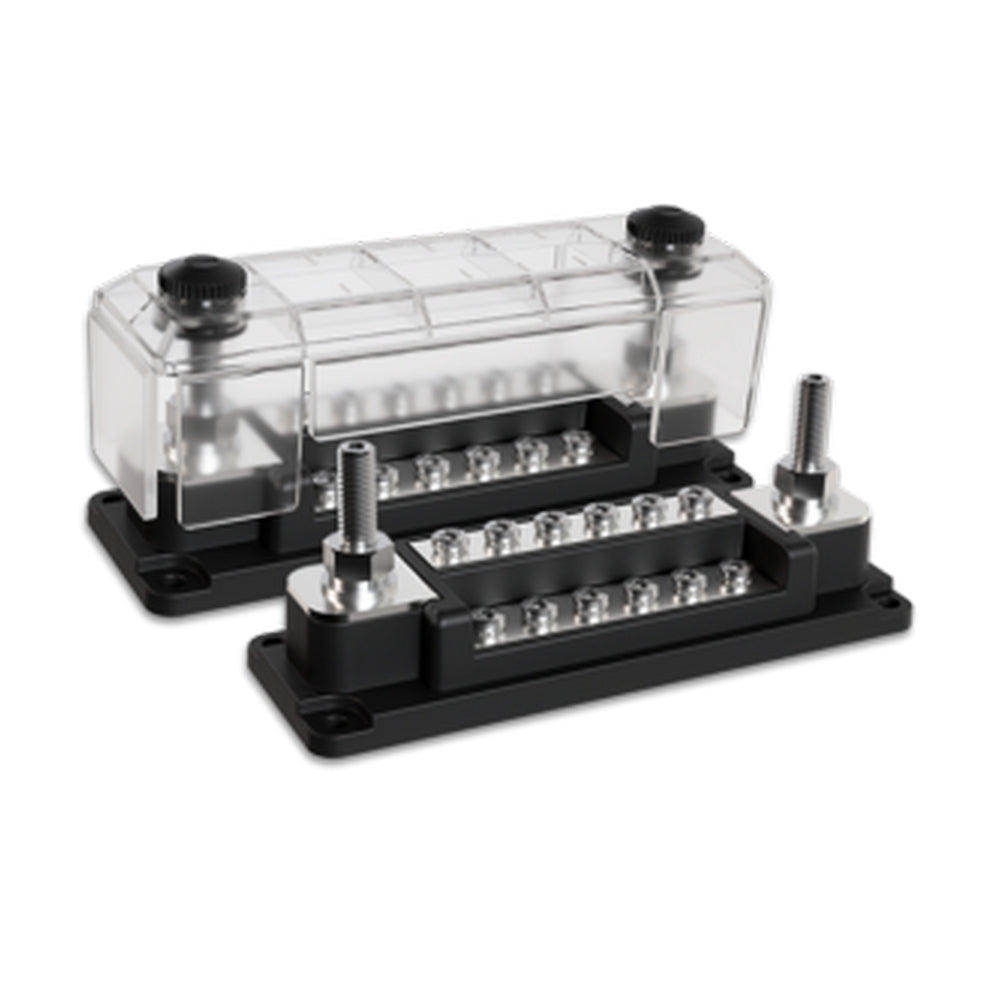

TBS DCM Dual Row 12xM4 Insulated Busbar 300A

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates

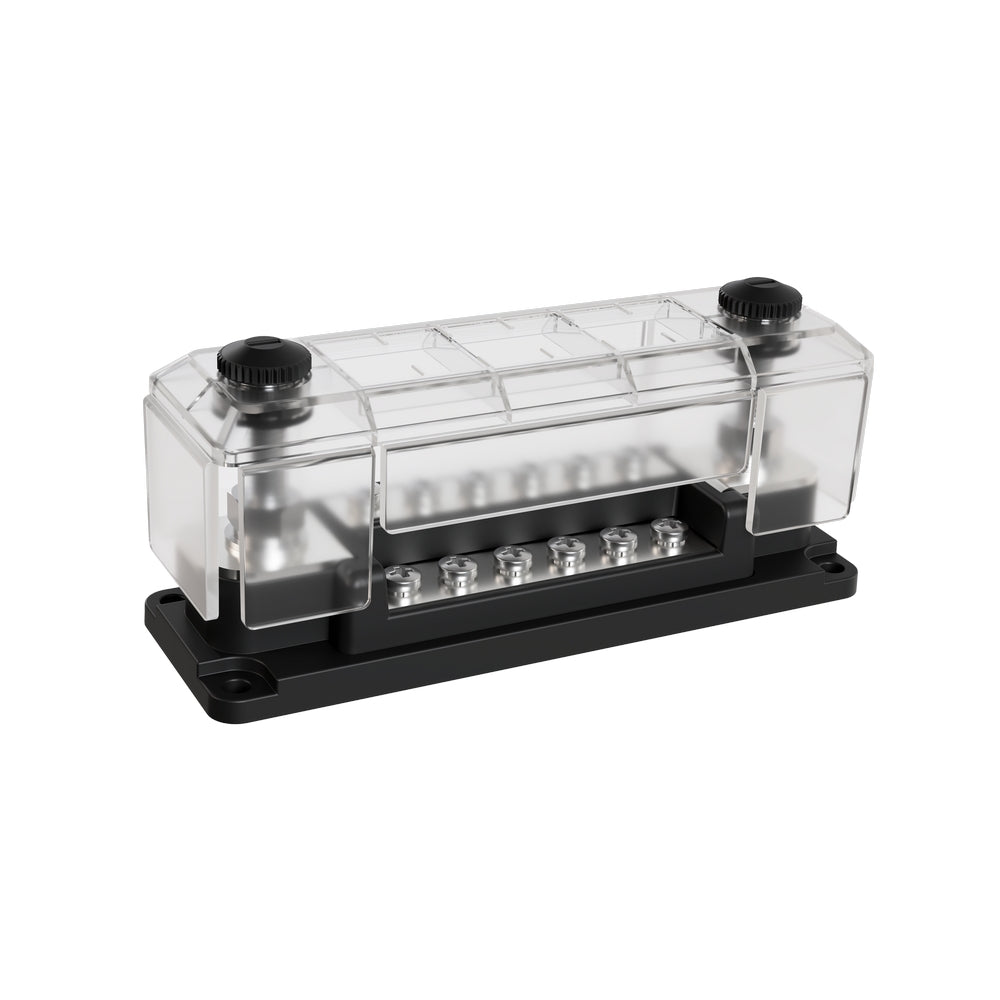

• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

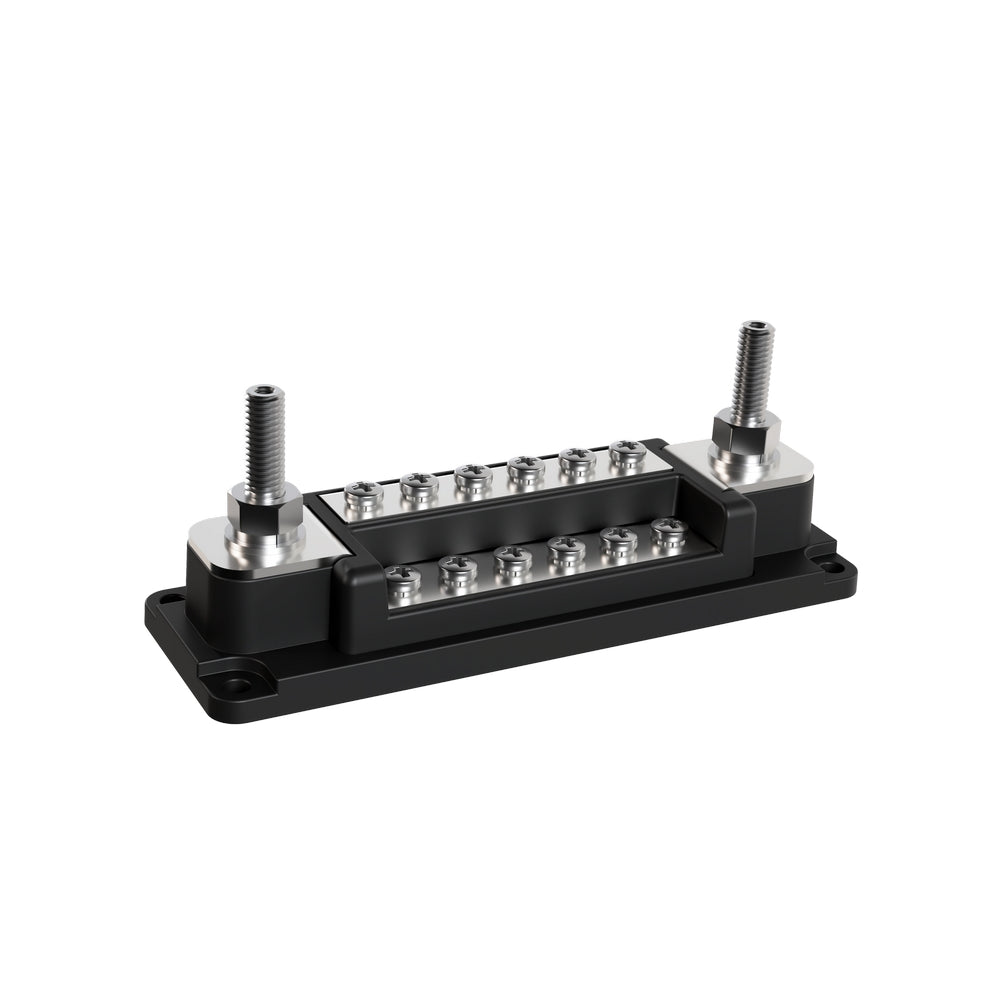

• 12 x M4 Screws
• 2 x M8 Studs
• Max Current: 300A
• Max Voltage: 60V DC
• Dimensions: 150 x 50 x 66.5mm (L x W x H)
