TBS DCM Link Plate 41mm Pitch (600A)

Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates

We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 studs. Additionally, we have equipped some Link Plates with two M4 screws to provide convenient connection points for smaller cables.

Features:

• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Stainless steel M4 screws and washers provide convenient connection points for smaller cables
• Compatible with DCM M8 and M10 stud busbars and ANL (600A) holder
• Not compatible with “Mega“ and “ANL (300A)“ fuseholders
• Current capacity can be doubled by stacking two Link Plates (after removal of M4 screws)

Product Info:

• Max Current: 600A
• Dimesions: 63 x 25mm
• Accepts Stud Size: M8 + M10

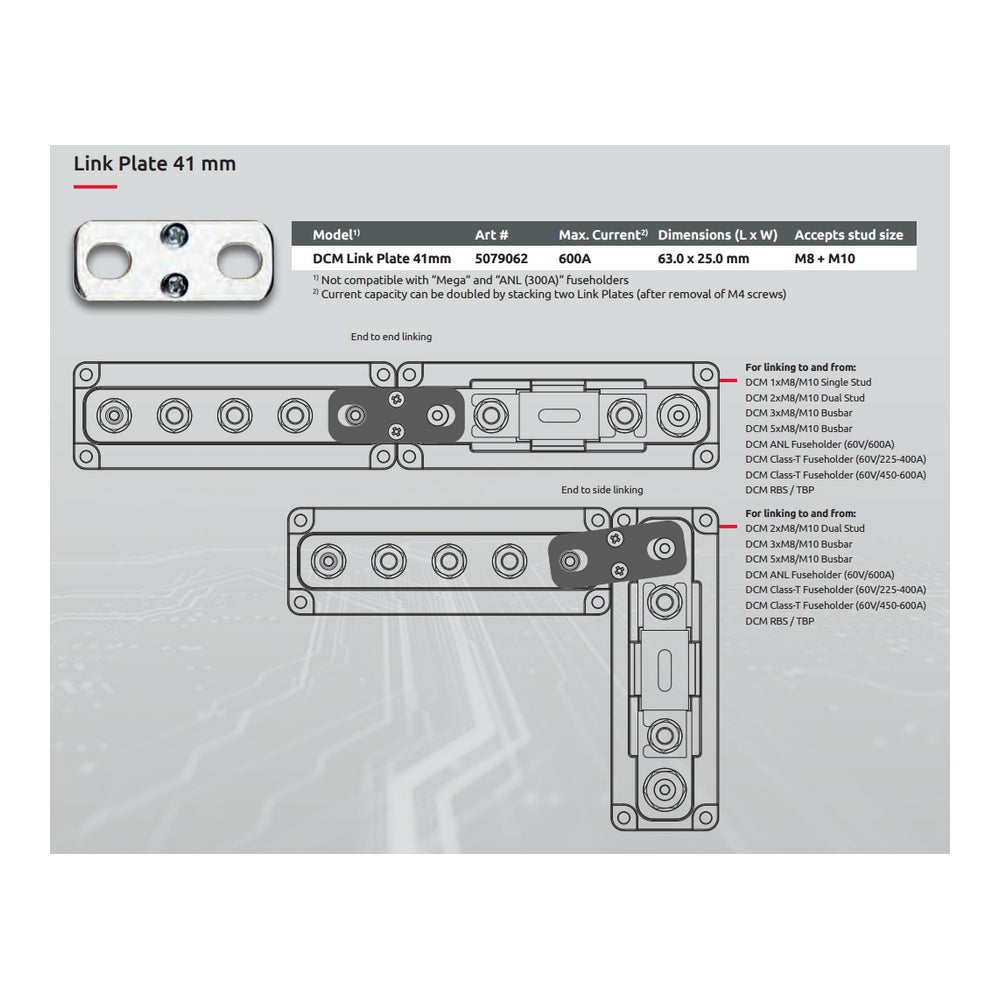

• See image for linking options
