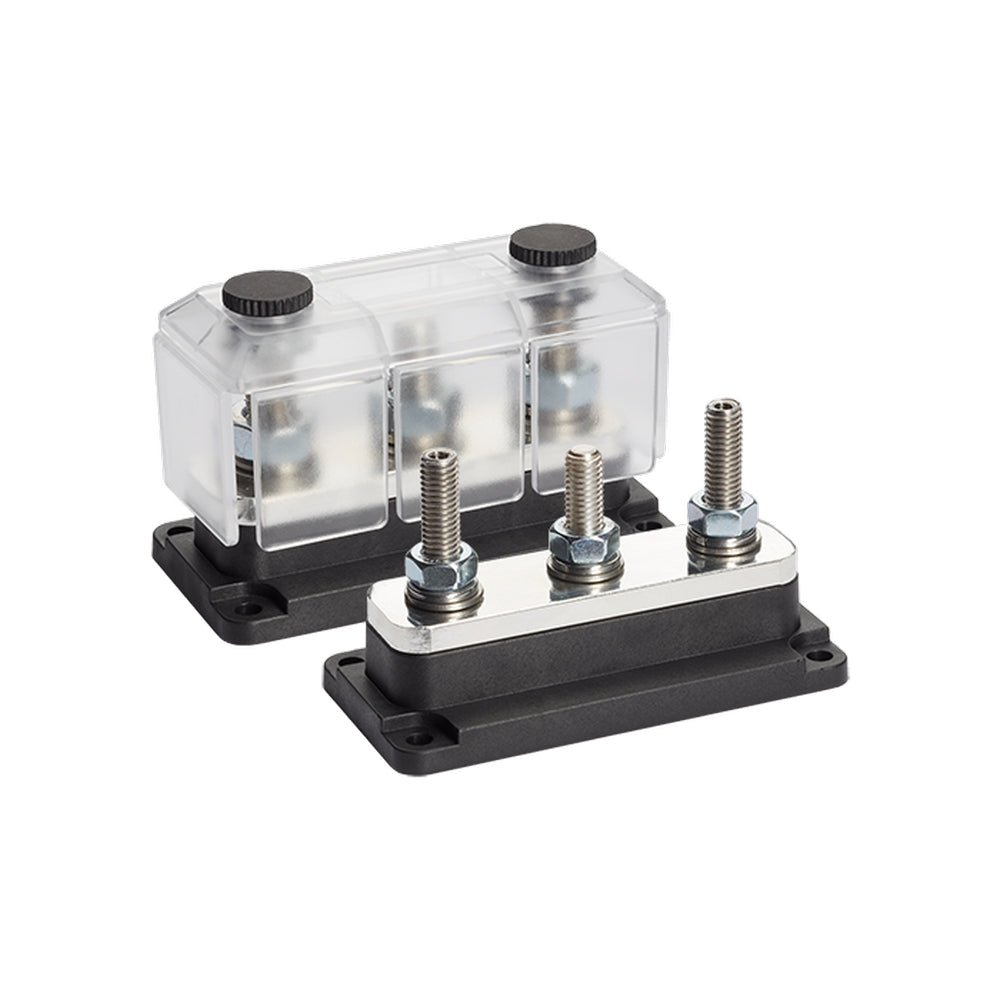

TBS DCM 3xM8 Insulated Busbar 600A

The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.

The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Common interconnection heights for easy combining of multiple products using link plates
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections
• Easy in-system connection access due to top locked covers

Product Info:

• 3 x M8 Stud Busbar
• Max Current: 600A
• Max Voltage: 60V DC
• Dimesions: 100 x 50 x 64.5mm (L x W x H)
