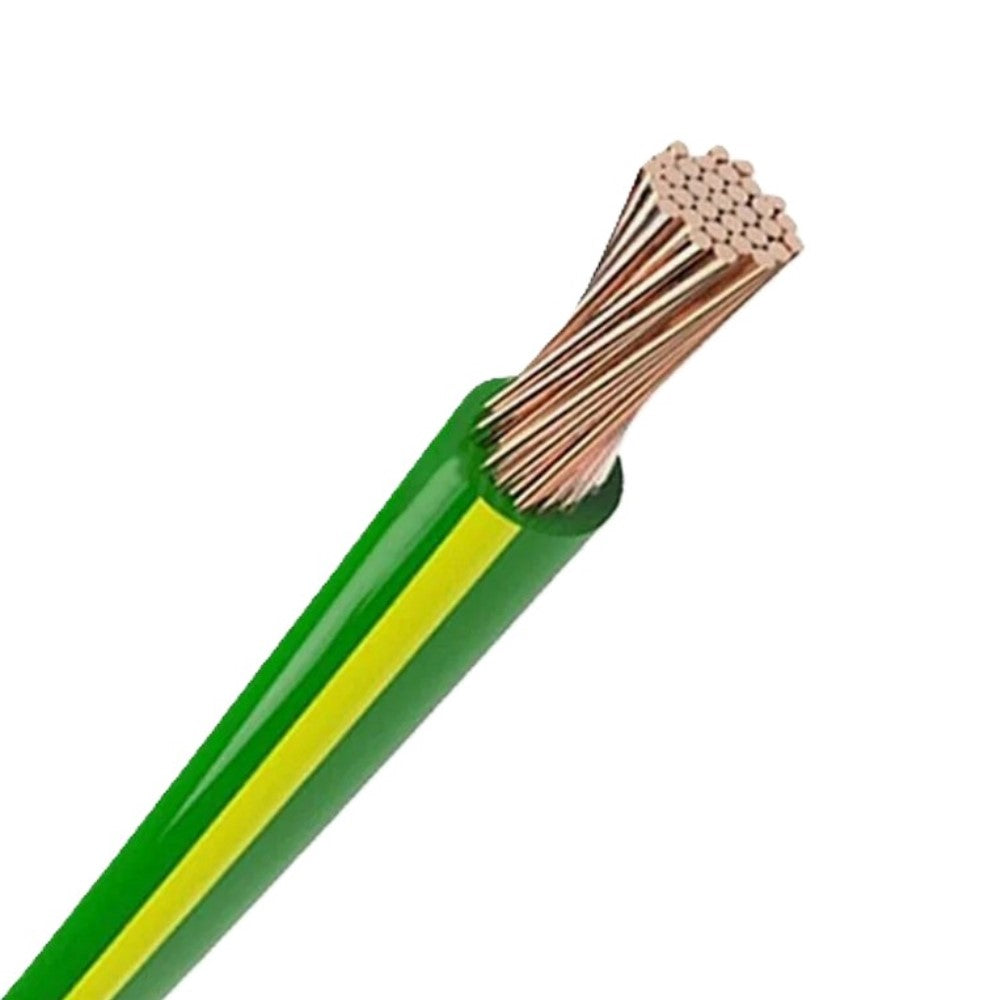

Bi-Colour Single Core Thin Wall Cable 2mm 25A - 100 Metres

Bi-coloured Thin Wall Cable  - Available in 100 Metres Rolls.

The first colour indicates the main cable sheath colour and the second is the tracer colour.

Please allow 3-5 days for delivery.

Specification

• 2mm² - 28/030
• Capacity 25 Amps
• Overall Diameter: 2.8mm

High temperature thin wall low voltage wiring cables suitable for use in the automotive, marine and allied industries. These cables are specified as standard by manufacturers throughout Europe due to their high performance characteristics.

• Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC
• Plain copper conductors to BS EN 60228:2005, PVC insulated
• Single core suitable for use at temperatures from -40ºC to 105ºC with excursions up to 120ºC
• Twins and multicores PVC sheathed at 70ºC
• Suitable for 12v or 24v systems (Maximum voltage 60v)
• Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses
• Good resistance to petrol, diesel, lubricating oils and diluted acids
• PVC insulation offers good resistance to abrasion and cut through
