KUS Dual Station Converter

Allows the connection of two senders to one gauge or one sender to two gauges.

• 2 Senders > 1 Gauge
• 2 Gauges > 1 Sender
• No calibration required
• Works with resistance senders (fuel, water, holding tank, temp, pressure, etc.)
• 12 or 24 volts DC (24V requires resistor to be fitted which is included with all gauges unless dual voltage)
• Dimensions: 57 x 51 x 21mm

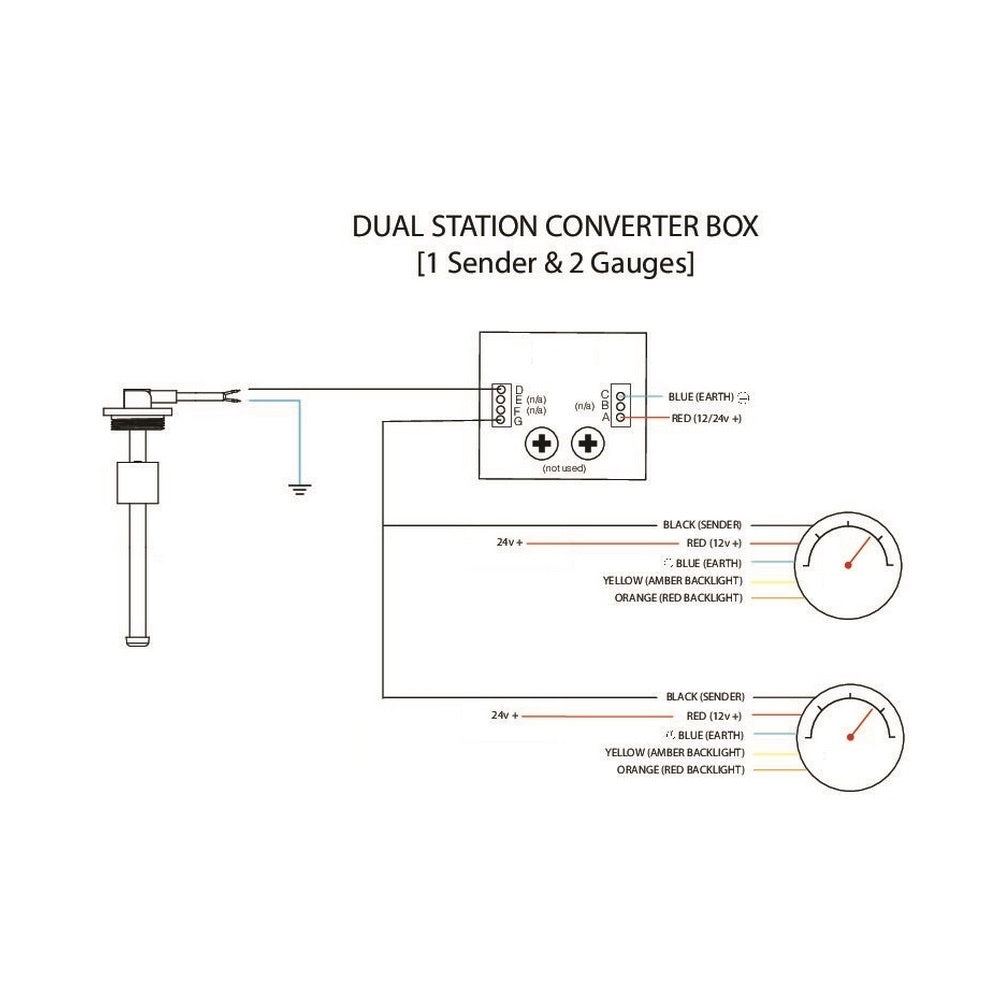

1 Sender > 2 Gauges
Any application where you require two gauges to display the information from one sender eg. one fuel sender feeding a gauge at the helm and another on the flybridge.

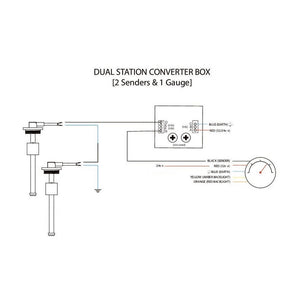

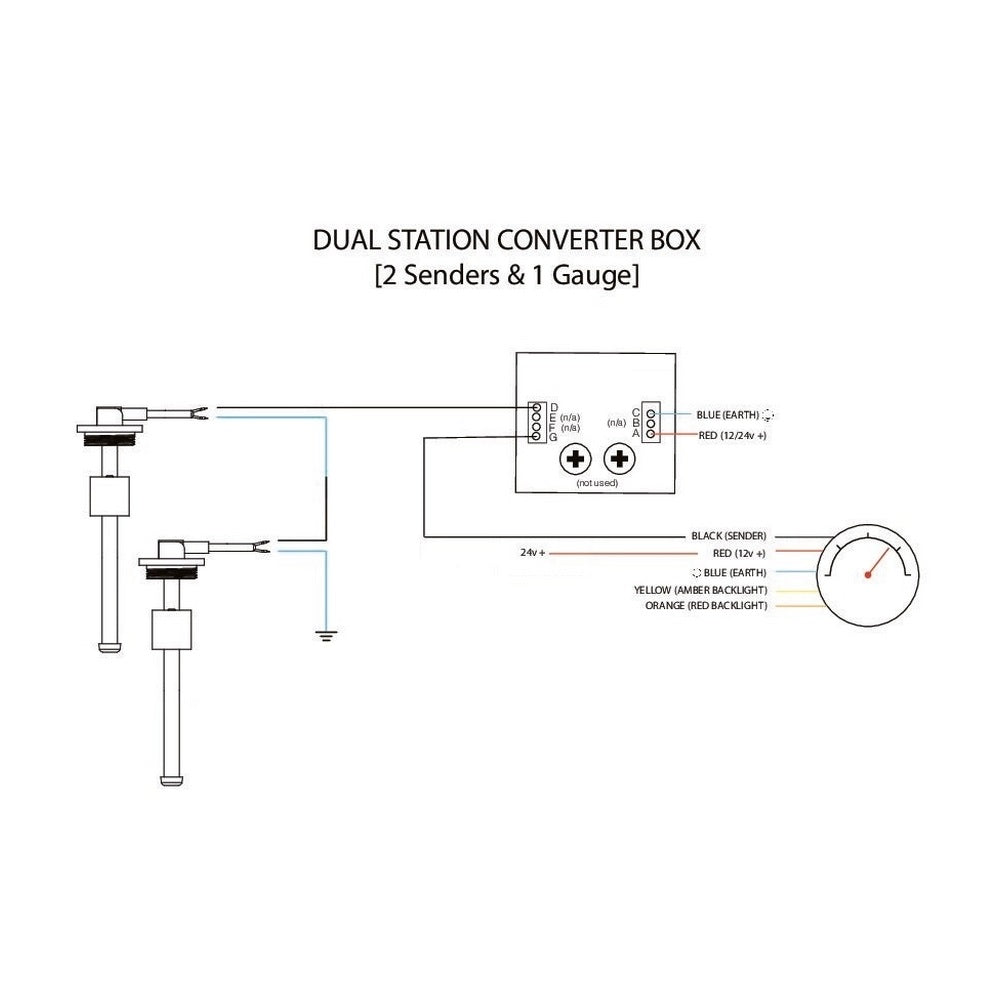

2 Senders > 1 Gauge
Twin fuel/water tank setup, for instance you wish to know the total volume of fuel/water available on one gauge.
