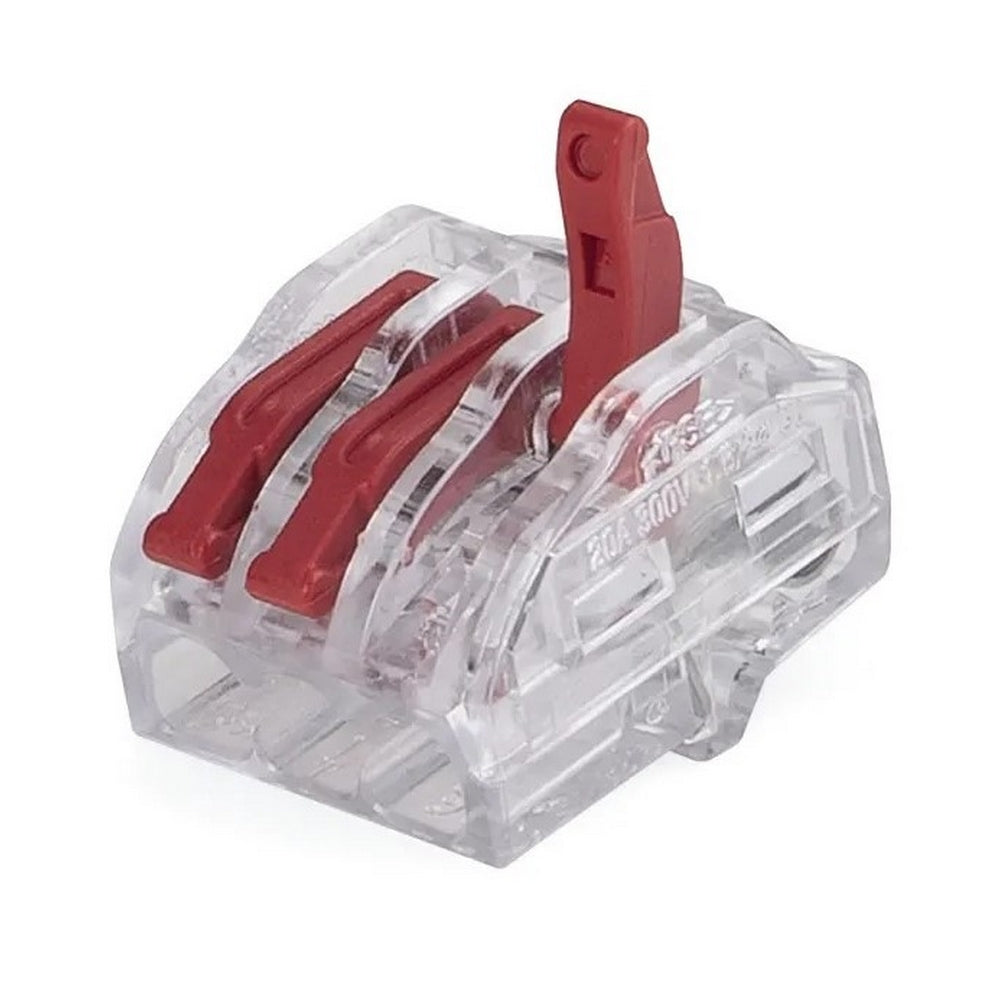

HelaCon Plus 3-Wire Splice Connector

Universal push-in wire connector for solid, stranded and fine-stranded wires.

• Compact size connector
• Wire clamping range: 0.2 - 4.0 mm²
• Separate voltage test entry on the top
• Operating Temperature -30 °C to +85 °C
• Max Current 32A
• Max Voltage 450V
• Stripping Length 10mm
• Length (L) 17.0mm
• Width (W) 20.5mm
• Height (H) 14.0mm
